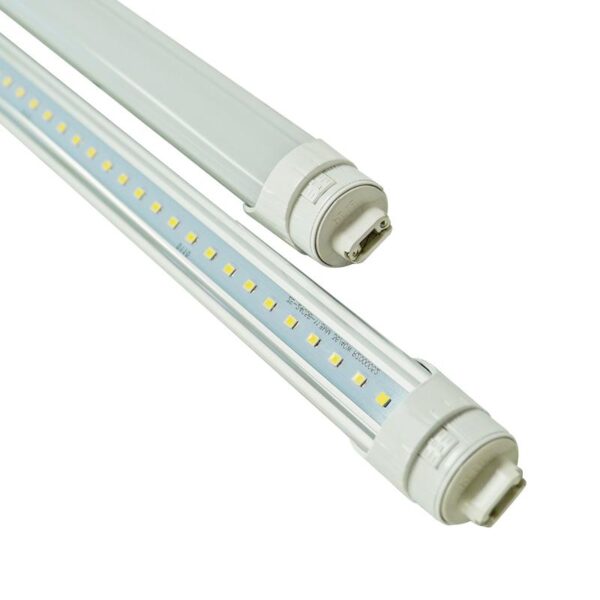

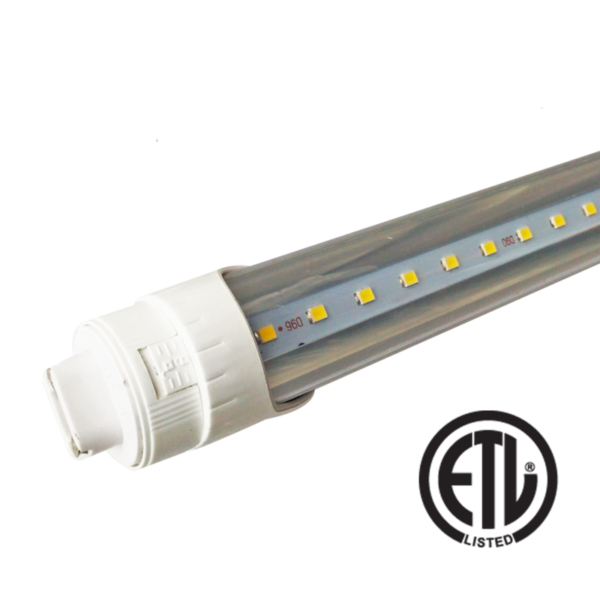

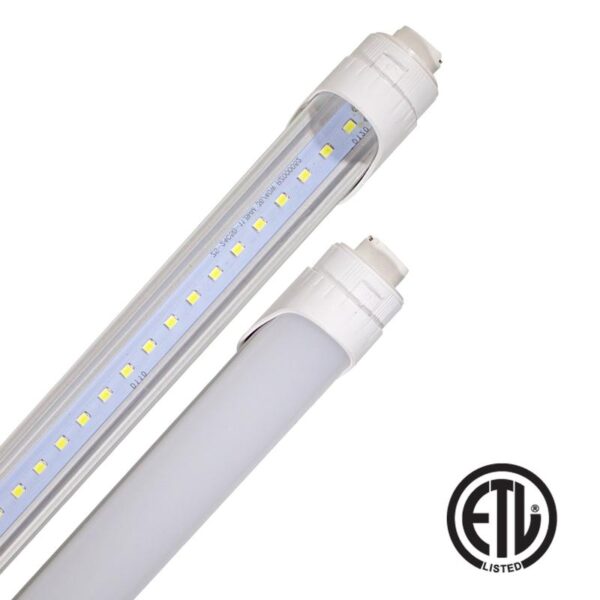

8ft 40W LED Tube – R17D Base – High Output Base – Bypass – (ETL) – *Buy By The Box*
Available Options
| Thumbnail | Trim | Color | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|
| Clear Trim | Cool White | Out of stock | |||
|
| Clear Trim | Natural White | Out of stock | |||
|
| Clear Trim | Warm White | Out of stock | |||
|
| Frosted Trim | Cool White | Out of stock | |||
|
| Frosted Trim | Natural White | Out of stock | |||
|
| Frosted Trim | Warm White | Out of stock |
- Description
- Additional information
- Installation
Description
This 8ft Tube must bypass the existing ballast in the fixture and rewired to the two end wiring diagram in the installation guide.
- Two ended bypass
- Environmentally friendly without mercury
- 50,000 hours or more working time and 3 year warranty
- No mercury
Additional information
| Trim | Clear Trim, Frosted Trim |
|---|---|
| Color | Cool White, Natural White, Warm White |
| Certification | ETL |
| Size | 95.47in x 8.27in x 7.28in |
| Watts | 40W |
| Lumens efficiency | 120 LPW |
| Lumens | 4400 |
| Color | 5000K, 6000K |
| Trim | Clear, Frosted |
| CRI | > 80 |
| Input Voltage | 100-277V |
| Lifespan | 50,000 hours |
| Base | R17D |
| Package Count | 20 pcs/box |
| Warranty | 3 years |
| Power factor | 0.95 |
| Housing material | Aluminum + pc |
| LED type | SMD2835 |
| Wiring | Two ended bypass |
Product Spec Sheet
Click Here to view the Product Spec Sheet.
Installation Manual
Click here to download the installation instructions above.
Warning:
- Not for use in vapor-tight fixture
- Not for use with dimmers
- Not suitable for outdoor use
- Not suitable for high temperature or damp locations
- Not suitable for heavy air polluted locations
- Please turn off the power before replacing new bulb
CAUTION:
- Risk of electric shock
- Use in dry locations only
