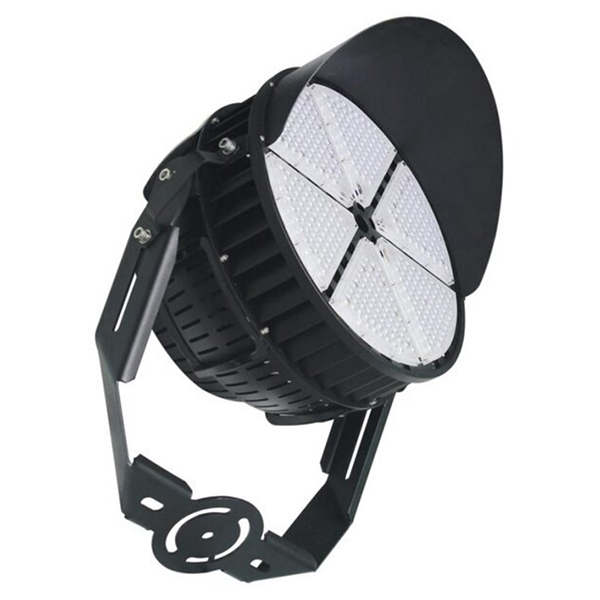

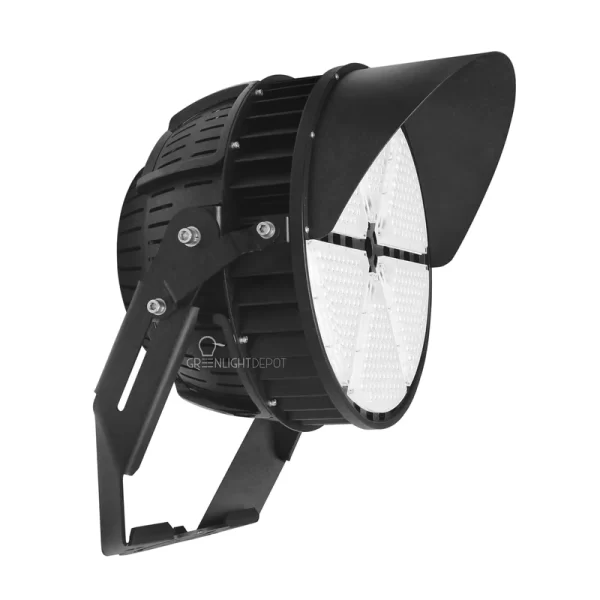

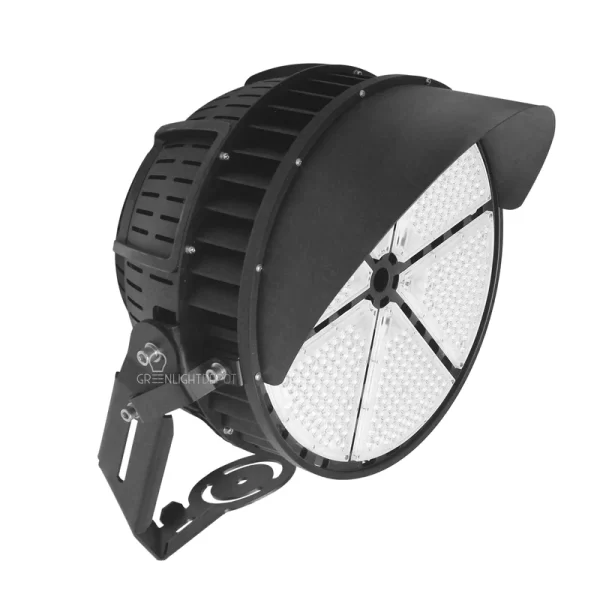

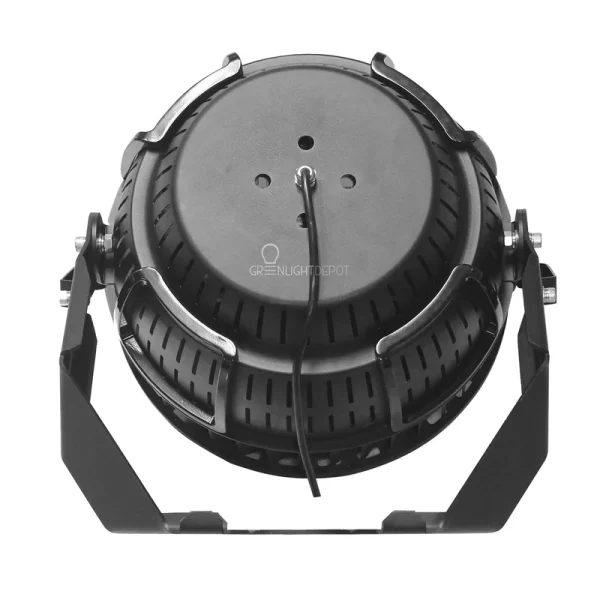

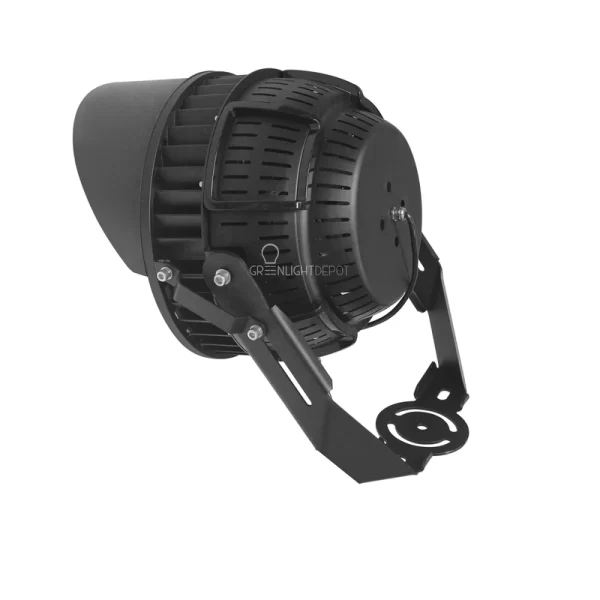

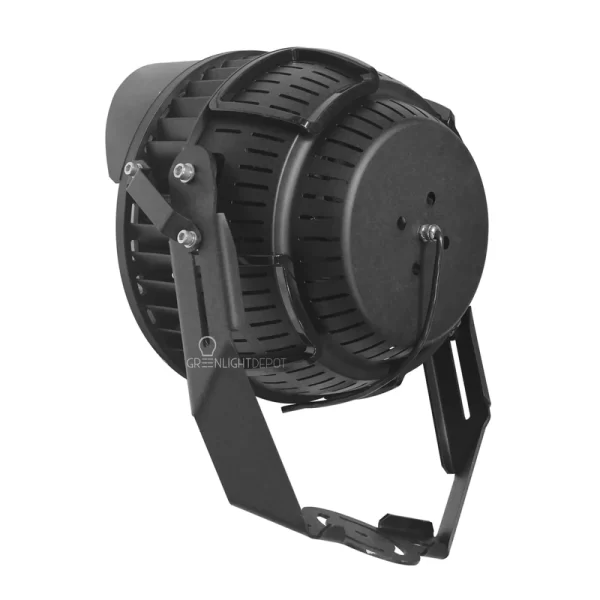

High Mast Stadium Lights – 750W – Sport Lights – 277V to 480V – (DLC+UL) – 5 Year Warranty
- Description
- Additional information
- Product Specifications
Description
Our LED Stadium Sport Lights are at the top of the line in both quality and price. With Lumileds and a Meanwell Driver, the fixtures are guaranteed for up to 5 years. Our LED Powered 750W Street Lights have no UV or IR in the beam and are easy to install and operate. Additionally, these LED Powered Lights to provide Eco-Friendly lighting without Mercury. Also, the output constant current lever can be adjusted through an output cable with 1-10V. Furthermore, our LED Street Lights provide convenient features such as “Instant Start,” and there is none of the FLICKERING or HUMMING that is accompanied by some outdoor lighting. These high-powered lights also have adjustable fitter mounting.
This product is listed under DesignLights Consortium® (DLC) which not only provides eligibility for rebates from most utility providers but also promotes high-quality and energy-efficient lighting products through vigorous testing protocols.
Additional information
| Wattage | 750W |
|---|---|
| Lumens | 97500 Lm |
| Certification | UL, cUL, DLC |
| Replaces up to | 1500W – 2000W HID |
| Lumens Efficacy | 130 LM/W |
| Color Temperature | Daylight White (5700K) |
| CRI | >80 |
| Input Voltage | 277 – 480VAC 50/60Hz |
| Viewing Angle | 15º |
| Lifespan | 50,000 hours |
| Driver | Meanwell |
| Weight | 58.4lbs |
| Shipping Weight | 65lbs |
| Warranty | 5 Years |
| Power Factor (PF) | ≥0.9 |
| LED Type | SMD3737 |
| LED Brand | OSROM |
| Housing | Aluminum |
| Cover | LENS |
| Housing color | Black |
| Operating Temperature | -4°F TO 122°F |
| Operating Humidity | 20％-90％ RH |
| Dimension | 19in x 18in |
| Shipping Dimensions | 22.8in x 22.8in x 23.6in |
| IP Grate | IP65 |
Product Spec Sheet
Click Here to view the Product Spec Sheet
Installation Manual
Download the installation guide here
Mounting Height Comparison Chart
Click Here to view Chart.
Notice for User:
- Please turn off the power before installing or changing assembly parts.
- The input voltage and lamps should be matched, after connecting the power line, Please make sure the wiring section is insulated.
- No professionals, must not install and disassemble the lamps.
